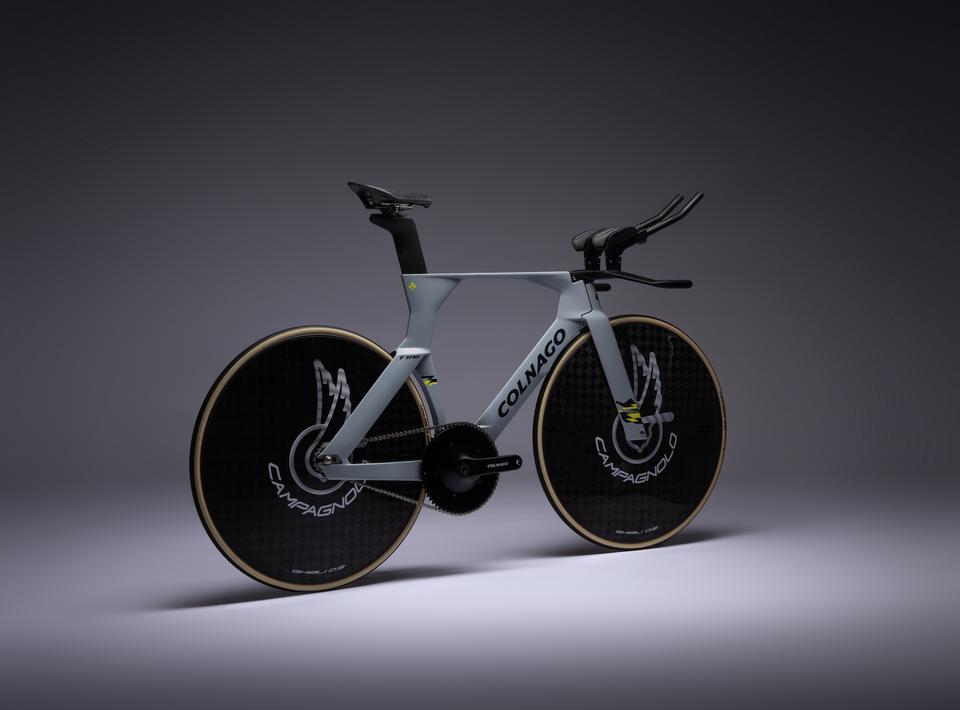

Colnago T1Rs Track Bike
Born for Speed. Perfected for Track.
The T1Rs marks Colnago return to the velodrome. Its frame and its components have been designed and engineered to minimize air resistance at high speeds and to reduce power losses, thanks to its exceptional stiffness.
Details
Series
T Series
Model
T1Rs
Frame kit
Frame (material)
Monocoque carbon.
Fork (material, section notes)
Carbon Dual Crown fork
Headset
Included
Seatpost
Seatpost
Colnago Track Aero carbon seat post. Adjustable offset.
Seatpost clamp
Ritchey Wcs Alloy 1-Bolt Rail Clamp (included)
Wheel hubs width
Front hub width 65 mm – 2 bolts (M6)
Rear Hub width 100 mm – 2 nuts (M10)
Handlebar
Not included, to be requested separately:
Kit endurance/sprint: spacers and stem, compatible with 31.8mm diameter, available in 125-150-175mm sizes.
Kit pursuit:
Basebar TT/track low stackAdjustable extension kit
Bottom bracket
Bottom Bracket T47 Asymmetric
Maximum chainring dimension
72 Teeth
Maximum tyre size
28 mm
Standard Geometry

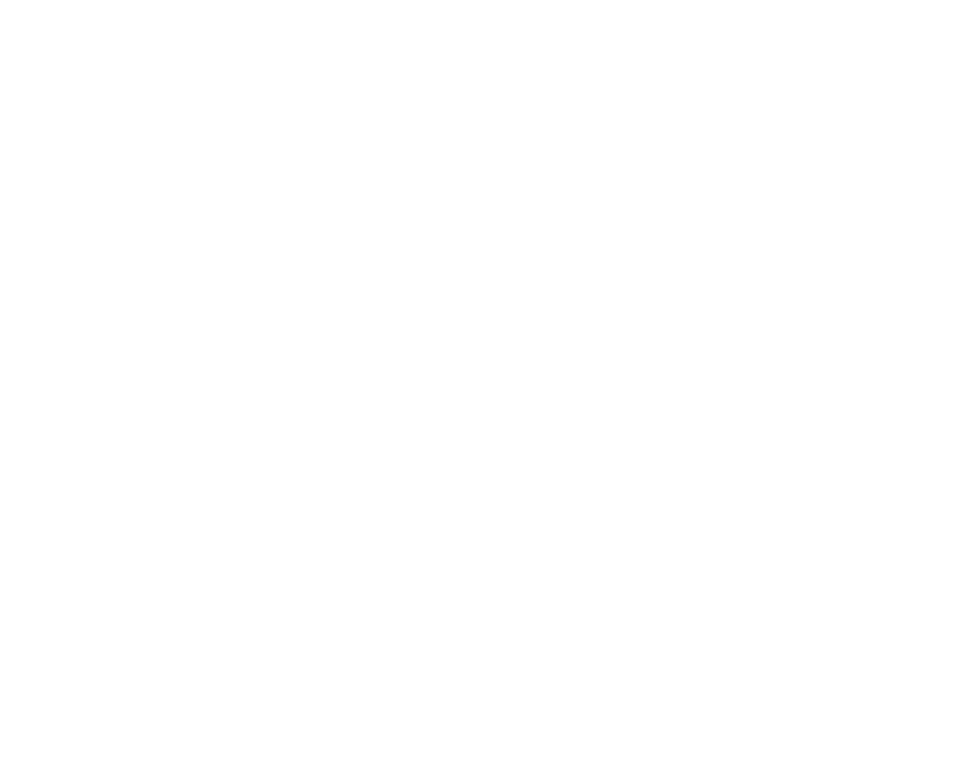

Reach
417 mm
Stack
468 mm
Ss°
73
Sc°
77.5
A
594
C
387
Wheelbase
977
Rake
44.5
Hs
75
Fork Length
372
BB Drop
55
)
Endurance/sprint set-up
The sprint/endurance setup offers maximum adjustability and precision handling through compatibility with standard 31.8 mm handlebars.
01
Endurance/sprint set-up
01
The sprint/endurance setup offers maximum adjustability and precision handling through compatibility with standard 31.8 mm handlebars.
)
Timetrial/pursuit set-up
The TT/pursuit setup features a monocoque carbon stem and base bar unit, engineered for maximum stiffness and seamless aerodynamic integration
02
Timetrial/pursuit set-up
02
The TT/pursuit setup features a monocoque carbon stem and base bar unit, engineered for maximum stiffness and seamless aerodynamic integration
)
Performance-first
The Colnago T1Rs has been meticulously designed and engineered to deliver uncompromising performance in the velodrome. Every line, every surface, and every component serves a single purpose: to minimize aerodynamic drag and convert every watt of power into pure forward motion.
Incredible Stiffness, to optimize every Watt
Track cyclists generate immense power, and the T1Rs is designed to handle it all — minimizing flex and ensuring that every watt of effort is transferred to the track.
Dual-crown fork
 "The stem and the fork are connected directly to the frame, increasing front-end stiffness for precise handling during high-speed sprints. Colnago")
The stem and the fork are connected directly to the frame, increasing front-end stiffness for precise handling during high-speed sprints.
Reinforced areas
 "Chainstays, seatstays, and dropouts are reinforced to withstand explosive starts and sudden accelerations without losing power. Colnago")
Chainstays, seatstays, and dropouts are reinforced to withstand explosive starts and sudden accelerations without losing power.
Oversized asymmetric BB
 "To keep the frame stable during seated or out-of-the-saddle sprints. Colnago")
To keep the frame stable during seated or out-of-the-saddle sprints.
Compact rear triangle
 "Delivers exceptional lateral stiffness while allowing a reduced distance between the pedals for optimized pedaling and aerodynamics. Colnago")
Delivers exceptional lateral stiffness while allowing a reduced distance between the pedals for optimized pedaling and aerodynamics.
Aerodynamic seatpost
 "A solution that combines airflow efficiency with maximum stiffness. Colnago")
A solution that combines airflow efficiency with maximum stiffness.
 "Colnago")
 "Colnago")
 "undefined Colnago")
Colnago Blockchain
Register your Colnago T1Rs on the Colnago Blockchain. You will enjoy all the legal benefits of having the ownership of your bicycle registered on a secure system accessible to the authorities.
In addition, you will be able to prove the authenticity of the frame at any time, resell your Colnago more easily on the secondary market, certify any maintenance carried out, and report a theft making it unsaleable on the secondary market.
Finally, you get an extension of the warranty for an additional year over the statutory two-year warranty already provided with the bike.
